From Design Concept to Finished Product – Shenzhen Xincheng Precision Empowers Commercialization of Scientific Research Innovations

Shenzhen Xincheng Precision Technology Co., Ltd. adheres to one core belief: Advanced manufacturing is far more than component production; it helps researchers turn innovative visions into reality.

Recently, the company’s engineering team has successfully completed customized precision manufacturing for core Quadrupole Ion Trap Electrode assemblies, delivering critical component support for domestic high-end mass spectrometer R&D projects. The smooth handover marks not only a milestone for this precision machining project, but also fully demonstrates the firm’s comprehensive capacity to back scientific innovation.Tiny Details Determine Core Performance of Scientific InstrumentsAs indispensable analytical equipment for modern detection, mass spectrometers are widely deployed across life sciences, pharmaceutical R&D, environmental monitoring, food safety inspection and material characterization sectors.

Quadrupole ion trap electrodes serve as a central functional component inside mass spectrometers. Their fabrication quality directly governs ion motion trajectories, electric field stability and the ultimate testing accuracy of finished instruments. Even micron-level dimensional deviations on such critical parts can skew final experimental readings, hence research institutions impose extremely stringent specifications on dimensional tolerance, structural uniformity and long-term operational stability.More Than a Manufacturer, Your Dedicated Engineering Partner from Blueprint to Physical ComponentAt project kickoff, the client’s R&D team had finalized theoretical design and structural modeling. Yet converting engineering drawings into qualified physical products entailed a string of thorny manufacturing challenges:

· How to achieve high-precision assembly between dissimilar materials of metal and ceramic?

· How to guarantee absolute geometric symmetry among four pole electrodes?

· How to curb assembly-induced errors that destabilize internal electric fields?

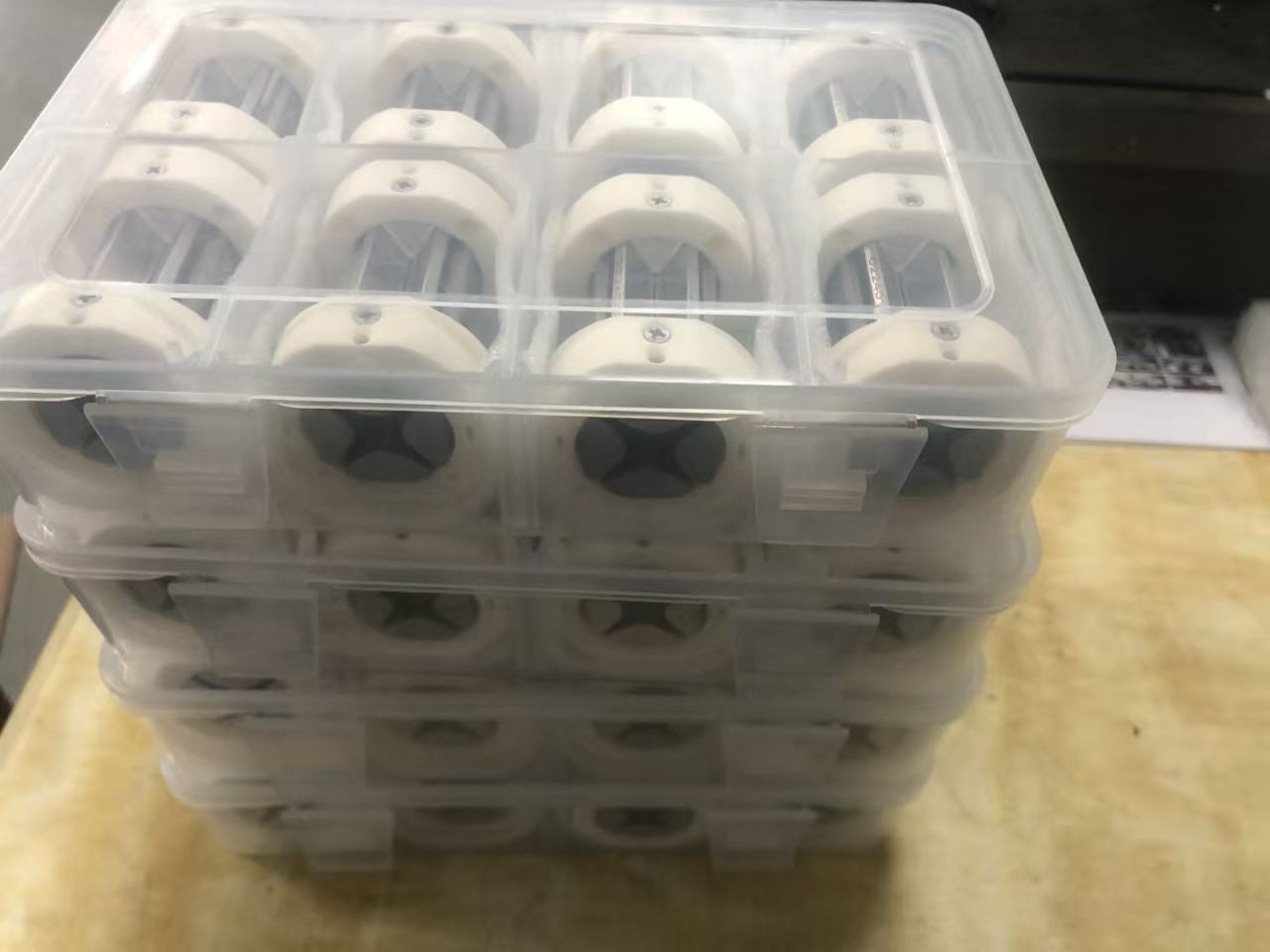

· How to maintain consistent product quality under low-volume pilot production?

At the early design phase, Xincheng’s technical team joined in process evaluation and customized manufacturing planning, collaborating closely with clients to analyze structural features and mitigate potential fabrication risks.

We fully understand time is the most precious resource for research initiatives. Reducing trial-and-error expenses and shortening R&D lead times therefore constitutes an essential value proposition of our precision manufacturing service.Pioneered Innovative Process to Near-Zero Assembly DeviationConventional production follows a sequential workflow: discrete part machining followed by final assembly. For ultra-precise ion trap assemblies, however, minuscule deviations generated during assembly would disrupt uniform electric field distribution.

After rounds of technical feasibility verification, our team pioneered an innovative manufacturing route: pre-assembly followed by integrated finish machining. We first complete precision positioning and assembly of 316L stainless steel electrodes with alumina ceramic insulating parts, then implement overall contour processing via high-precision Wire Electrical Discharge Machining (Wire EDM).

This proprietary methodology eliminates cumulative tolerance inherent to traditional separate processing, unifies all critical feature dimensions under a single machining datum, and fundamentally secures superior symmetry and consistency of electrode structures, laying a solid foundation for steady electric field distribution and reliable detection performance of high-end analytical instruments.Pushing Precision Boundaries to Meet Demanding Scientific R&D SpecificationsThe project sets rigorous manufacturing benchmarks as below:

· Key feature tolerance controlled within 0.005 mm;

· Inner hole surface roughness down to Ra0.15;

· Reliable bonding between 316L stainless steel and alumina ceramic;

· Consistent repeatability across pilot production batches.

By iteratively optimizing electrical discharge parameters, clamping fixtures and tool paths, our engineers resolved residual stress challenges during heterogeneous material co-processing and realized stable dimensional compliance. All delivered components passed client qualification tests and entered subsequent instrument development trials.R&D Calls for Trustworthy Engineering Partners Rather Than Ordinary Component SuppliersMost custom R&D products lack mature standardized manufacturing procedures. From proof-of-concept verification and prototype fabrication to low-volume trial production, manufacturers must possess robust technical comprehension and agile responsiveness.

For years, Shenzhen Xincheng Precision has rendered specialized manufacturing services to:

· Research institutes & academies

· University laboratories

· Analytical instrument manufacturers

· Medical device developers

· Automation equipment enterprises

· Robotics R&D companies

Beyond conventional precision machining outsourcing, we position ourselves as an embedded engineering partner throughout clients’ full R&D cycles.Turning Innovative Designs into Marketable End ProductsTranslating engineering blueprints into fully functional core components demands not only mature manufacturing techniques but also decades of accumulated engineering know-how.

Leveraging core strengths in precision Wire EDM, intricate irregular component fabrication, high-tolerance precision assembly and custom critical parts development for sophisticated instruments, Shenzhen Xincheng Precision Technology Co., Ltd. will keep empowering research teams and innovative manufacturers to materialize conceptual designs into finished products.

We firmly believe every innovative technology deserves ultra-precise manufacturing.About Shenzhen Xincheng Precision Technology Co., Ltd.Focused on precision Wire EDM and high-end custom precision component manufacturing, Shenzhen Xincheng Precision caters to scientific instrumentation, medical equipment, industrial robotics, automated machinery, aerospace and high-end laboratory device industries.Core Service Capabilities:· Precision Wire Electrical Discharge Machining (Wire EDM)

· Core component manufacturing for scientific analytical instruments

· Custom Quadrupole Ion Trap Electrode fabrication

· Precision internal gear & spline machining

· Compliant flexure hinge processing

· Ultra-fine micro-hole machining

· Tungsten carbide & hard alloy precision fabrication

· Custom prototype development & low-volume pilot production

Official Website: www.cncwireedmcn.com

Shenzhen Xincheng Precision: Empower engineers and research teams to turn innovative concepts into tangible finished products.
