Precision Wire EDM Parts and Custom Machining

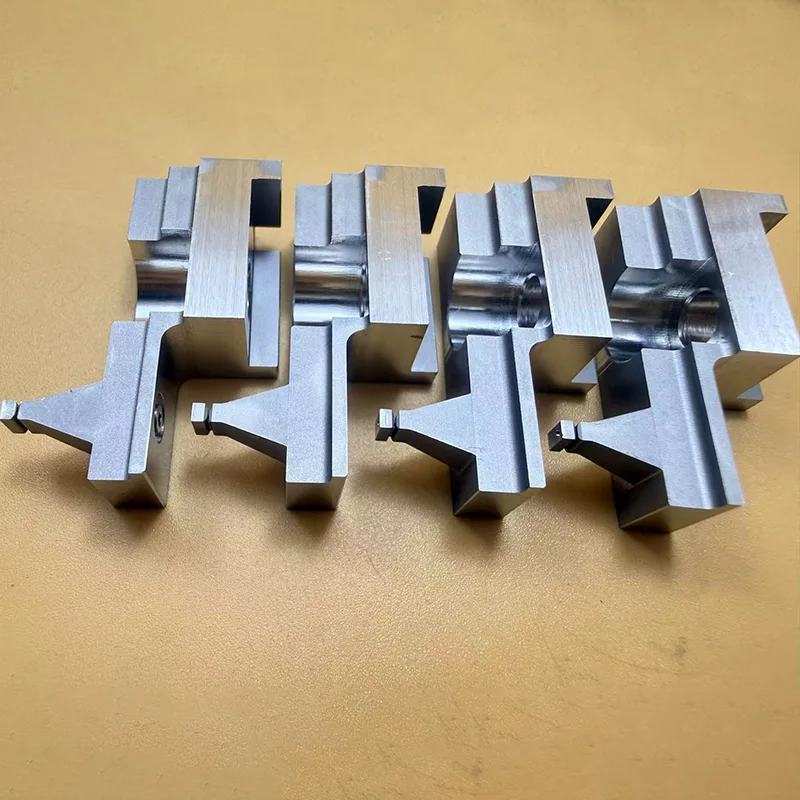

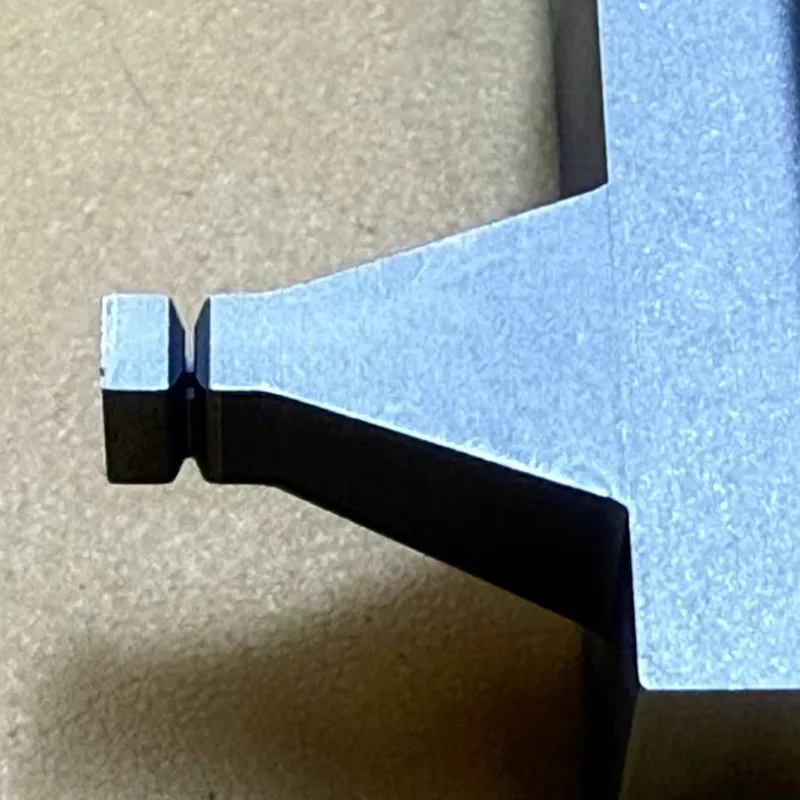

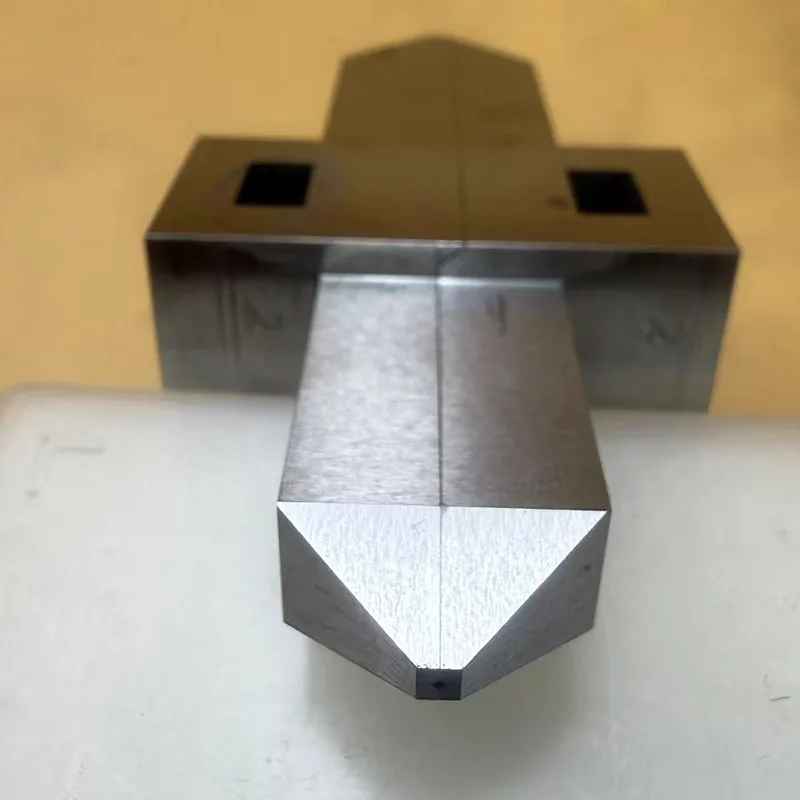

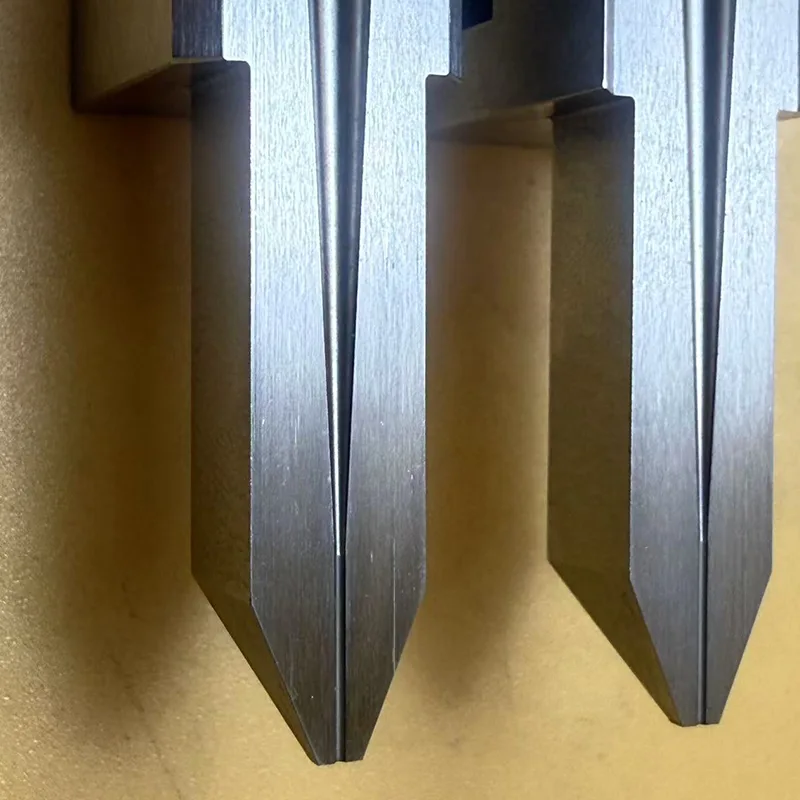

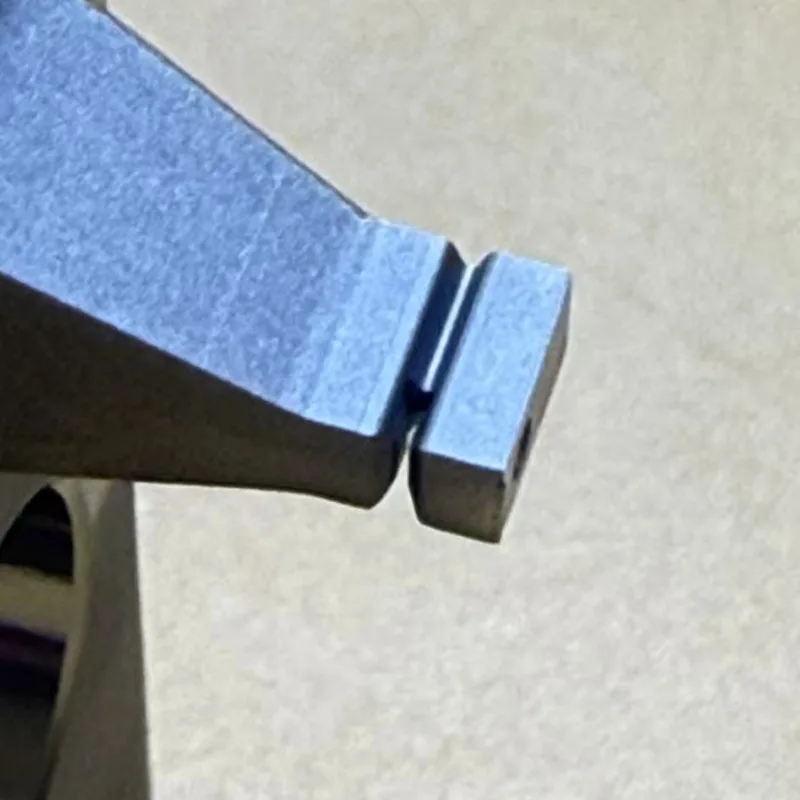

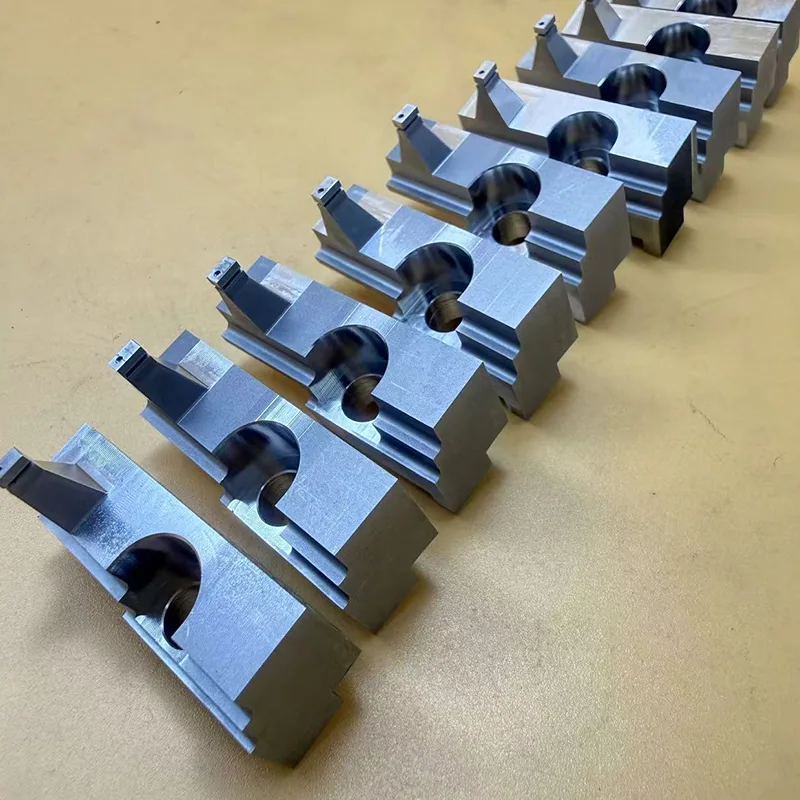

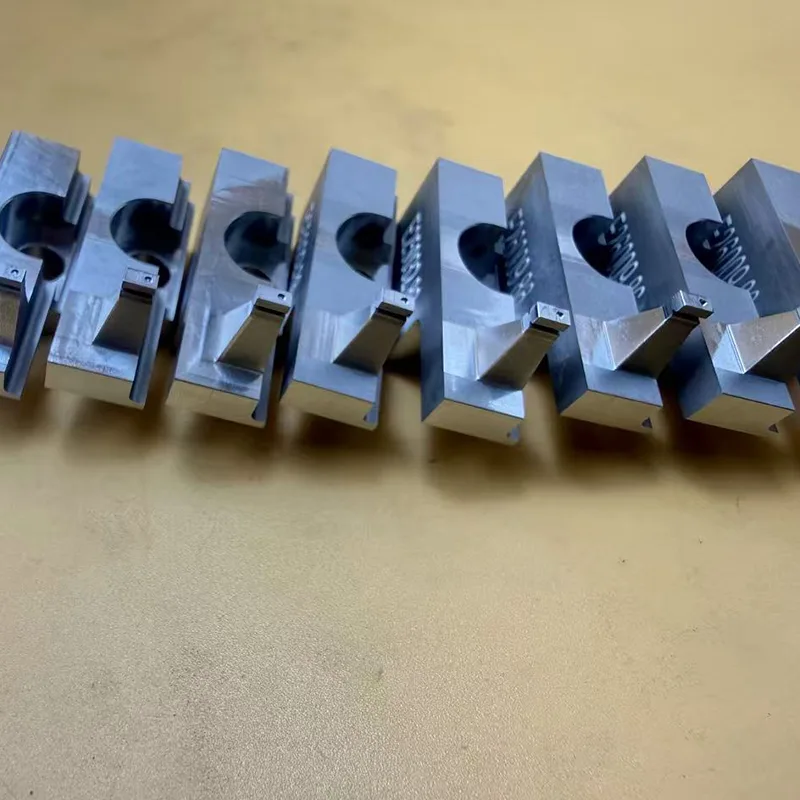

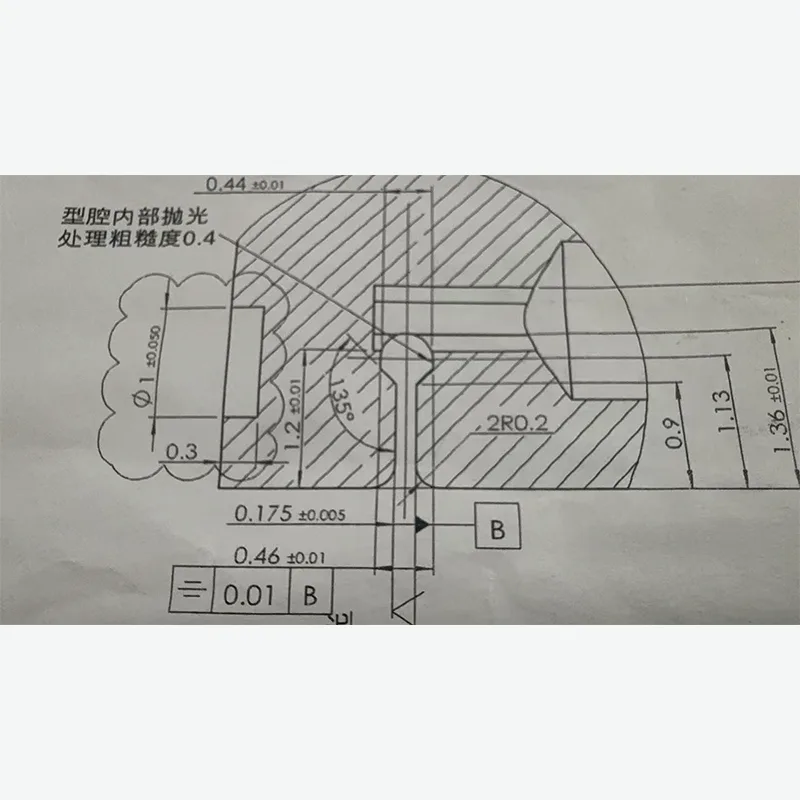

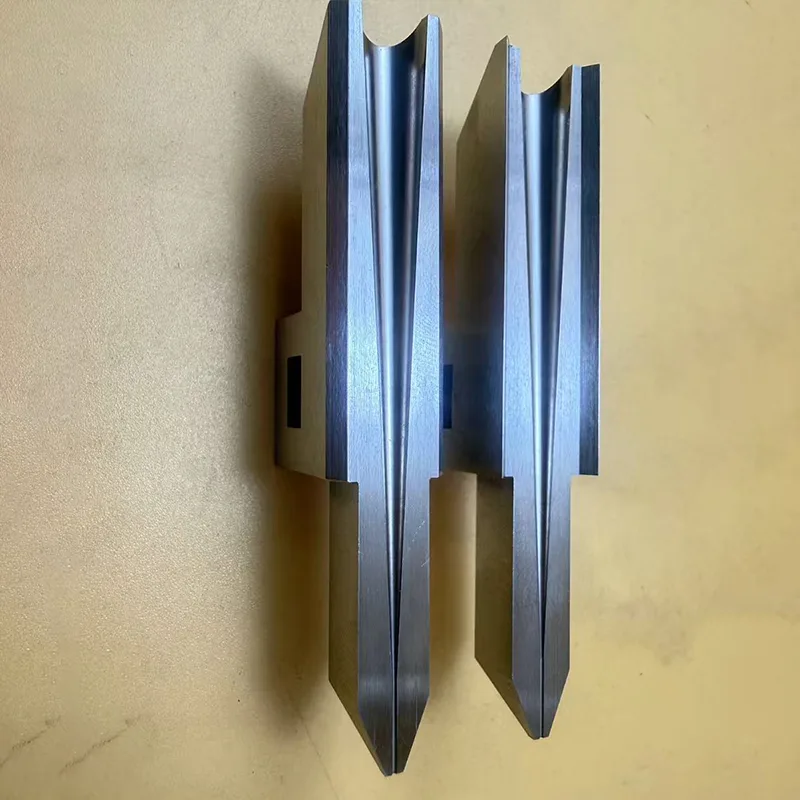

The local micro-holes are processed by slow wire EDM with a 0.07 fine wire. The front conical shape and central micro-slot structure ensure the straightness and smoothness of the flow channels.The internal part of the flow channels has been polished. In accordance with the Ra0.2 requirement in the drawings, it significantly reduces the risk of glue residue and blockage.The split design (openable structure) is convenient for disassembly, cleaning and maintenance. It is suitable for high-viscosity or easily-curing glues.

Core Strengths

◦ Ultra-high precision: The size tolerance of the microchannels is controlled within ±0.01mm, ensuring uniform and stable glue output without dripping or stringing.

◦ Strong durability: Made of hard stainless steel/mold steel, the surface has been finely processed, making it wear-resistant and corrosion-resistant, suitable for long-term continuous operation.

◦ High versatility: Standard installation interface, compatible with the majority of mainstream dispensing equipment, and customizable specifications available upon request.

Application scope

Precision Wire EDM Parts and Custom Machining is mainly suitable for key components of automated equipment and precision machinery, especially the core components related to dispensing. For example, the dispensing heads of automated dispensing equipment, whether for high-viscosity or easily-curing adhesives, our products can be adapted. Additionally, for components in precision machinery that require micro-slots and micro-holes, such as micro transmission parts in semiconductor equipment and precise structural parts in medical instruments, we can also precisely process them. As long as you have the drawings and specific requirements, we can produce them according to your needs and make them compatible with your equipment for use.

Q&A

1. What is needed for customizing the dispensing head?

Answer: As long as you provide detailed drawings, marking the precision, material requirements, and the usage scenarios of the dispensing (such as the type of glue), we can precisely customize it. Without the drawings, providing specific dimensions and requirements can also help us draw them.

2. Can micro-slot processing really use 0.07mm wires?

Answer: We have Western slow wire cutting equipment that is specifically capable of processing 0.07mm fine wires, ensuring the slot shape is regular and the surface finish meets the standards.

3. Can the product meet the Ra0.2 smoothness requirement?

Answer: The internal flow channel will undergo specialized polishing treatment, strictly adhering to the Ra0.2 requirements in your drawings, reducing glue residue and blockage.

4. How long is the warranty period for Precision Wire EDM Parts and Custom Machining?

Answer: The warranty period is 1 year. If it is not caused by human error, we will replace or repair it free of charge. If there are any quality issues, please contact us at any time.

Why choose us?

We have been engaged in precision processing for 20 years, equipped with imported equipment such as Western slow wire cutting machines and Sadik oil cutting machines. Our processing technicians are all from mold and mechanical manufacturing backgrounds, with rich experience. They can precisely control each process, and the tolerance of micro-channel dimensions can be controlled within ±0.01mm, ensuring uniform glue output, no dripping or dripping, and no wire drawing. Secondly, our products have strong durability. We use hard stainless steel and mold steel materials, and perform surface precision processing. They are wear-resistant and corrosion-resistant, capable of continuous operation for a long time. Finally, we are reliable and have guarantees. We have a complete quality inspection process and relevant certifications. We have cooperated with major brands such as Helliode and Cooper Electronics. We support small batch customization and large-scale production. We provide one-on-one follow-up throughout the process, from drawing confirmation to production delivery, ensuring your complete peace of mind.
