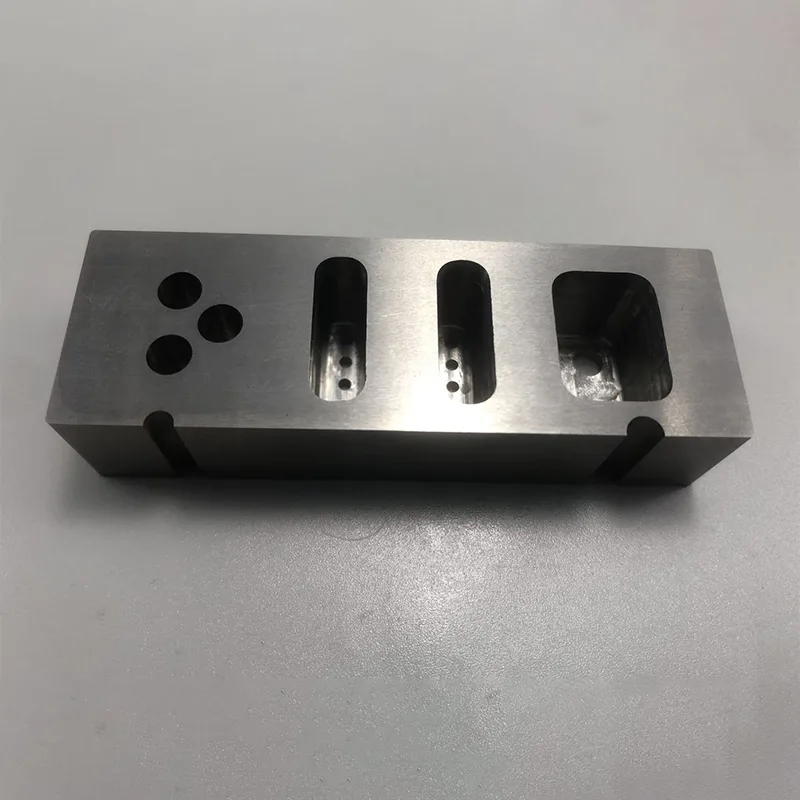

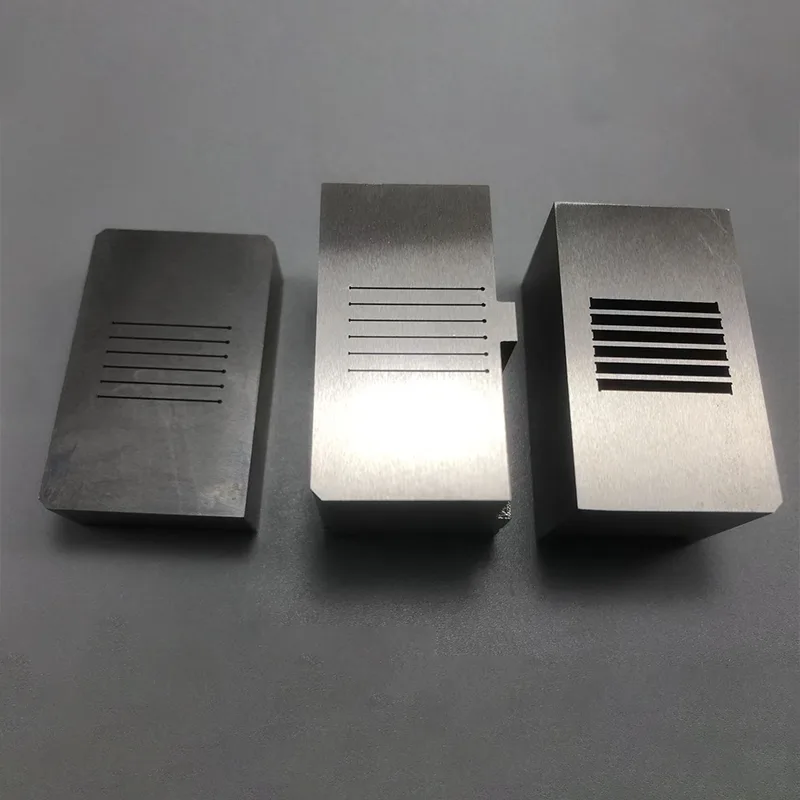

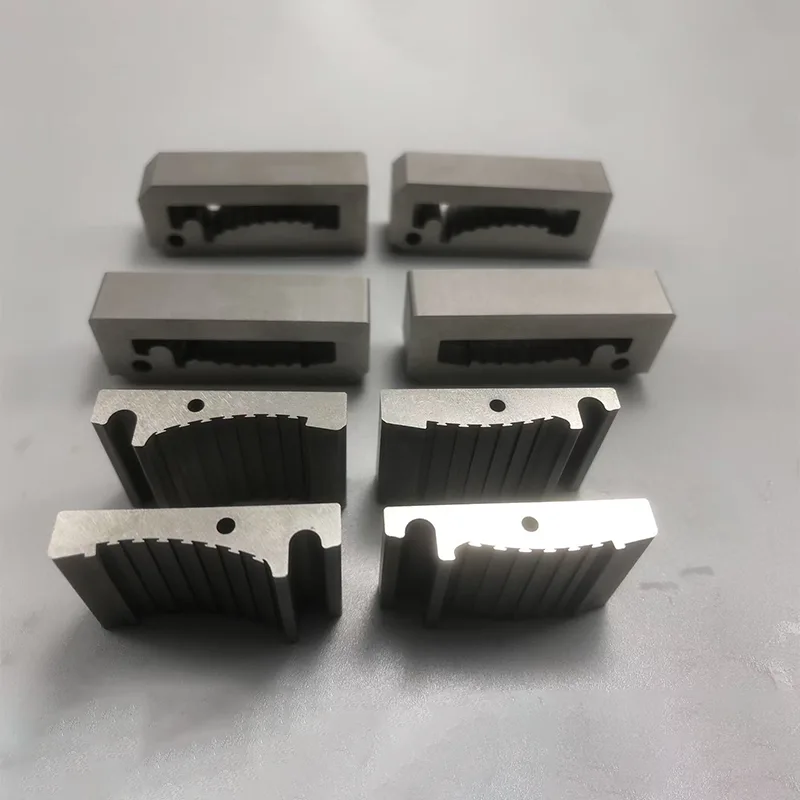

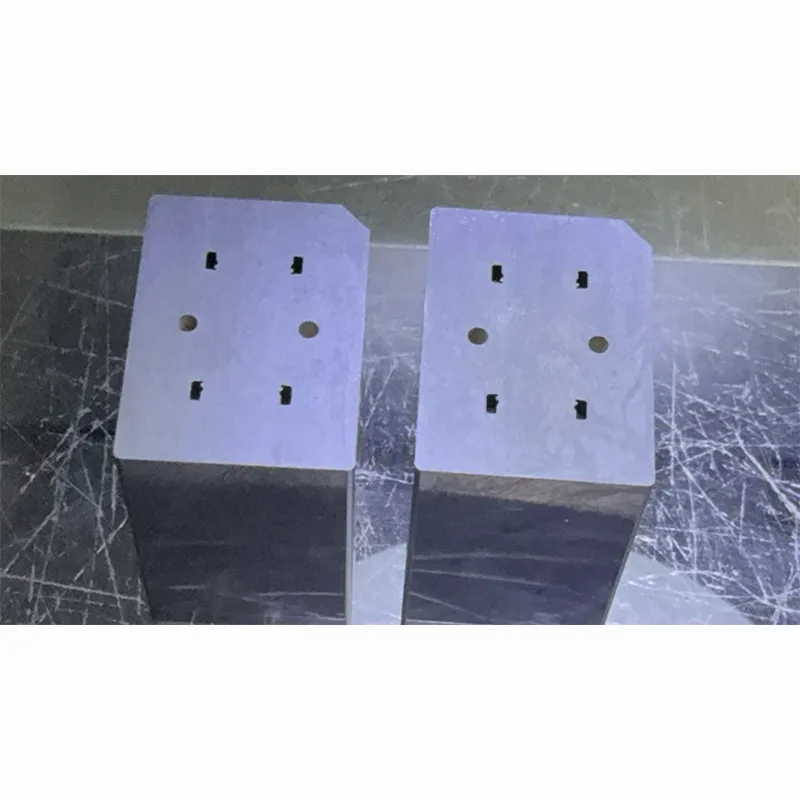

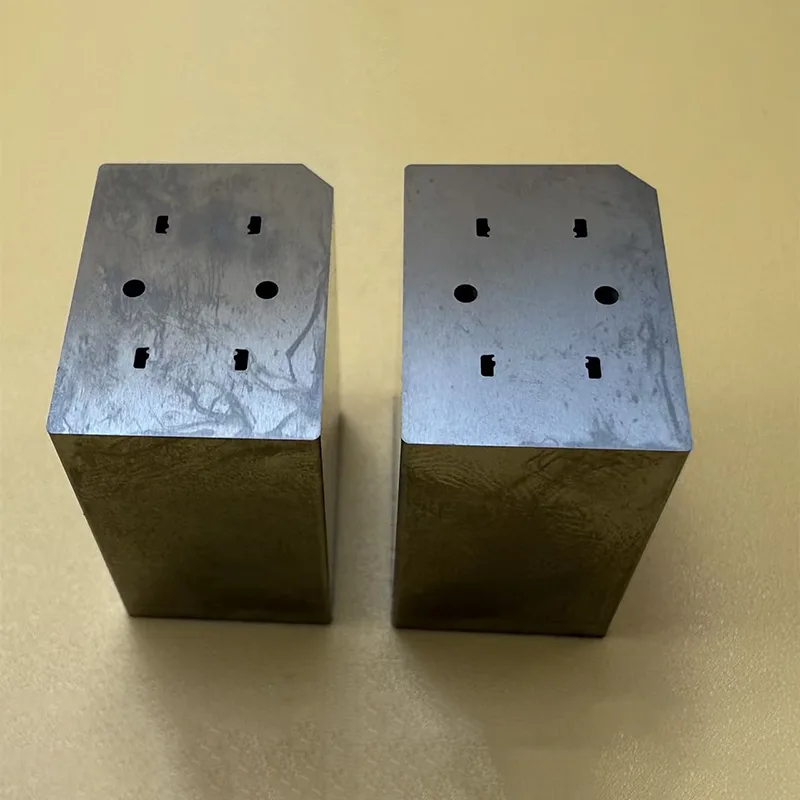

Metal Stamping Die Cutting Edge

Metal Stamping Die Cutting Edge is a special equipment for stamping and forming of sheet metal parts. It is mainly used for the production of large quantities of complex parts in fields such as automobiles, electronics, and home appliances. The core processes include punching, bending, forming, etc. It can be classified into four types according to the process: blanking dies, bending dies, drawing dies and forming dies. According to the degree of process combination, it can be divided into single-process dies, compound dies and progressive dies. The die system is composed of unloading plates, fixed plates and concave dies, and combined with modular components such as blanking inserts and bending inserts to achieve multi-station continuous operation.

Inspection Standard

For Metal Stamping Die Cutting Edge, the inspection standards of Xincheng Metal stamping parts are as follows:

1. Part Drawing/Inspection guidance (standard) book: Some simple metal stamping parts can be inspected by referring to the various dimensions marked on the drawing. Secondly, the use of various measuring instruments, the most basic ones being tape measures, calipers, micrometers, gauges, go and stop gauges, etc. It is also necessary to pay attention to some important tolerances marked on the drawing and whether the tolerance range is consistent with the drawing. For some high-precision products, the tolerance requirements must be strict.

2. Special inspection tools: Inspection is carried out based on the actual condition of the parts.

3. Sample parts: For some parts without inspection tools but with complex shapes that cannot be expressed by two-dimensional drawings. It can be tested by a quadratic circle. The signboard is the most intuitive reference object, through which it can be seen whether the structure and surface treatment are qualified.

4. Poor material quality.

About Us

We offer aesthetically pleasing manufacturing processes, have years of experience in factory production, and ensure timely delivery.

We support customization, accepting design samples and custom-made products based on provided drawings. We can tailor products to meet specific customer needs. Various thicknesses are available for parts processing.

Our products are of stable quality, resistant to corrosion and wear, and easy to maintain.

We provide attentive after-sales service and convenient maintenance.
